Automatic Door Spare Parts in South Africa: What Wears Out & When to Replace It

When To Replace Automatic Door Parts matters for South African property owners planning windows, doors or automatic entrances. This guide explains when to replace automatic door parts clearly so you can decide with confidence. In this guide we look at when to replace automatic door parts in line with recognised automatic door technology.

An automatic sliding door on a busy shopfront can cycle several thousand times a day. Like anything mechanical that works that hard, a handful of parts are consumables — they wear, and eventually they need replacing. The good news: catching a worn part early is a cheap, quick swap; ignoring it is what turns into an emergency call-out with your entrance stuck open on a Saturday.

Here’s a plain-English guide to what wears out on an automatic door, how to spot it, and what’s safe to do yourself versus what needs a technician — plus where to get genuine spares delivered anywhere in South Africa.

Which automatic door parts actually wear out?

The drive train — the parts that move the door

• Drive belt — the toothed belt the motor pulls to slide the door. It stretches and frays with age; the first signs are jerky movement or the door drifting out of its closed position.
• Main rollers (hangers) — carry the full weight of the panel along the top track. Worn rollers make the door noisy and cause it to run off-true.
• Return pulley — guides the belt at the far end of the header. A worn bearing announces itself with a squeal or grinding.

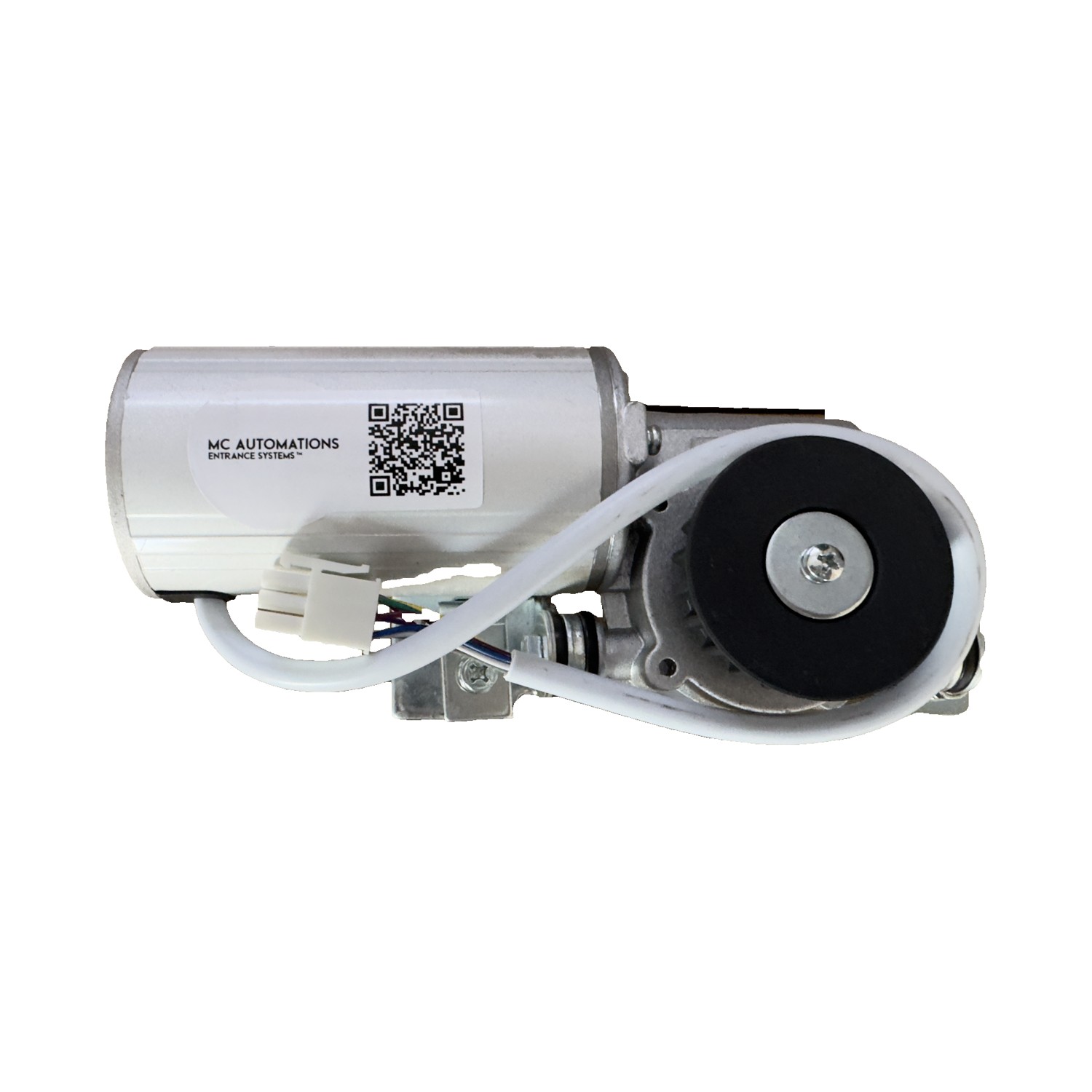

• Motor drive unit — the motor and gearbox that actually drives the belt. It usually outlasts everything else, but when it fails it’s a straight replacement on the existing frame.
• Belt brackets and end stops — the brackets clamp the panel to the belt; the end stops cushion the door at each end of its travel.

Sensors — safety and activation

• Activation (motion) sensor — detects someone approaching and tells the door to open. A faulty one leaves the door either dead or opening at random.
• Safety sensors — stop or reverse the door if someone is in the opening. When they’re dirty or failing, the door won’t close or keeps reversing. We stock the MC-507, Microcell One and MCW-100 safety sensors.

Control and access

• Control board (PC board) — the brain of the operator. Power surges and lightning are its biggest enemy in South Africa, so a surge-damaged board is a common replacement.
• Remote and receiver — for remote or keyed operation of the door’s modes.
• Electric lock (MC-125 Lock) — secures the door in the closed position after hours.

Floor guides

The nylon and frameless floor guides keep the bottom of the panel tracking true. They’re small, cheap, and wear steadily as grit collects in the track — an easy part to overlook until the door starts catching.

Match the symptom to the part: when to replace automatic door parts

A quick diagnostic shortcut — the likely culprits, in the order we usually find them:

• Door won’t close all the way → dirty or failing safety sensor, debris in the track, worn rollers, or a slack drive belt.
• Door opens on its own → the activation sensor is picking up stray movement (a banner in a draught, an aircon vent, reflective flooring).
• Door won’t open at all → check power and the mode switch first, then the activation sensor and control board.
• Noisy or juddery running → worn main rollers, a return-pulley bearing, or a loose belt.
• Door won’t lock → the electric lock.

Not sure which it is? Our guide to how automatic sliding doors work and common faults walks through the diagnostics in more detail.

What you can do yourself — and what needs a technician

Safe to DIY: wiping the sensor lenses clean, clearing grit and packaging out of the bottom track, and checking the mode switch hasn’t been left on “manual” or “locked”. These fix a surprising number of “faults” in seconds.

Call a technician for everything else. Belts, rollers, the motor and the control board mean live electrics and heavy glass panels — not a DIY job. If you’re past the clean-and-clear stage, book an automatic door repair.

Genuine MC-125 spares, delivered across South Africa

We supply genuine spare parts for the MC-125 automatic sliding door system, delivered nationwide. Order the exact part you need:

Browse the full range on our automatic door spare parts page. Not sure which part you need? Send us your operator model and a photo and we’ll point you to the right one.

How often should automatic doors be serviced?

We recommend preventative servicing every six months for a standard commercial entrance, and quarterly for high-traffic doors like centre entrances, hospitals and fast-food outlets. A scheduled service catches a worn roller or a fraying belt while it’s still a small, planned part swap — not an after-hours breakdown.

When To Replace Automatic Door Parts

Coetz Glazing designs, supplies and installs to spec, then services what we fit — contact us for a site measure and a fixed-price quote.

When to replace automatic door parts: the main parts

Knowing when to replace automatic door parts starts with knowing what each part does. These are the parts you will find on most automatic doors, and the ones that eventually need replacing:

• Operator (header) – the housing for the motor and electronics.
• Motor and gearbox – drives the door open and closed.
• Drive belt – carries the motor’s movement to the leaves.
• Rollers and track – carry the door along the opening.
• Motion and safety sensors – open the door and keep people safe.
• Controller (PC board) – sets speed, hold-open time and closing force.
• Floor guides – keep the leaves aligned at the bottom.
• Lock and backup battery – security and load-shedding resilience.
• Glass leaves and brushes – the door panels and their seals.

Frequently asked questions

How long does an automatic door drive belt last?

It depends entirely on cycle count, but on a busy retail entrance a drive belt is very much a wear item. A six-monthly service checks belt tension and condition so it’s replaced on your schedule rather than failing mid-trade.

Can I replace automatic door parts myself?

Cleaning sensors and clearing the track are safe DIY jobs. Anything involving the belt, rollers, motor or control board involves live electrics and heavy glass, so it should be done by a technician.

Do you supply spares for doors other than the MC-125?

Our online range covers the MC-125 system. If you run a different operator, get in touch with the make and model — we’ll tell you what we can source.

Do you deliver spares nationwide?

Yes — we deliver automatic door spares across South Africa. Order online, or contact us for help identifying the right part.

Need a part or a service?

Whether you need a single spare or a full service, we can help. Browse automatic door spare parts, book an automatic door repair, or get in touch for a quote.

When to replace automatic door parts: getting a quote

If you are weighing up when to replace automatic door parts, MC Automations, our parent company, can help: it supplies, installs and services automatic doors. To quote accurately, we need to know:

• The opening. The width and height of the clear opening, with photos of the existing frame or shopfront.
• Sliding or swing. The MC-125 automatic sliding door system is R27 590 and the MCW-100 swing door operator R15 900, excluding VAT.
• Traffic. How many people use the entrance, and whether trolleys, prams or wheelchairs pass through.
• Power. Whether there is a power point near the head of the door.
• Installation. Installation is included in Gauteng; outside Gauteng it is quoted per project.
• Service and warranty. We recommend a service every six months, and the operator carries a 24-month warranty.

Questions about when to replace automatic door parts? Call 010 412 0062, WhatsApp photos to 076 613 4418, or price an automatic door in the online estimator.

Planning your next service. Knowing when to replace automatic door parts is the question this guide answers, and the honest version is that it depends on cycles rather than the calendar. A door opening a few hundred times a day and one opening several thousand reach the point of when to replace automatic door parts years apart. Send us the door type and roughly how many times a day it opens, and we will tell you what to watch and when to replace automatic door parts on your entrance specifically.
