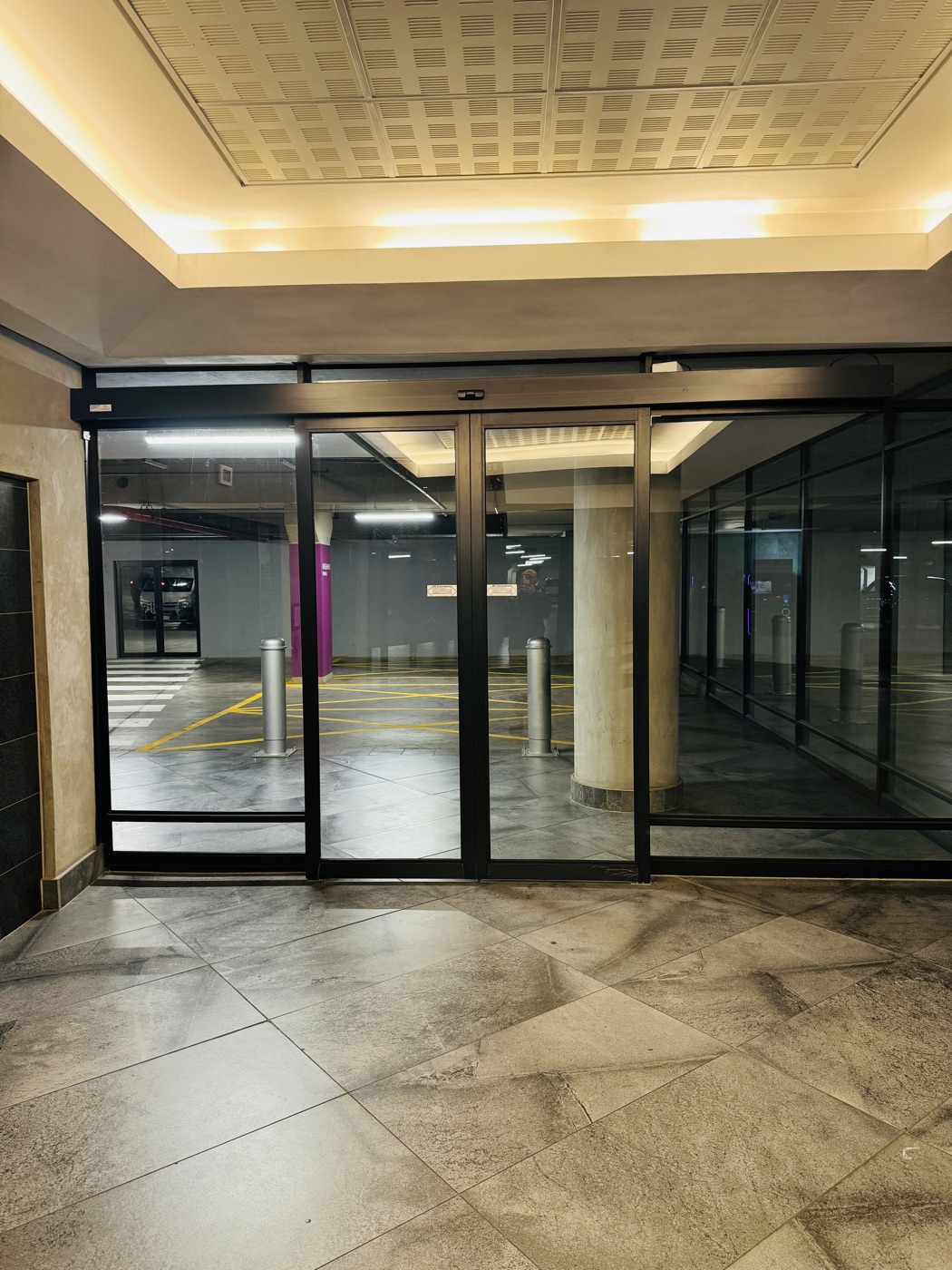

Framed vs frameless sliding doors — both are excellent, and the choice depends on look, budget and traffic. Automatic sliding entrances come in two visual languages: aluminium-framed, where every leaf and panel sits in an engineered frame, and frameless, where toughened glass panels run with minimal hardware. Both can be automated — but they are specified very differently.
The case for aluminium-framed
Framed construction is the workhorse of commercial shopfronts. The framing carries the glass safely, gives the track and floor guides solid fixing points, integrates naturally with fixed sidelights and transoms, and can be powder-coated or anodised to match the rest of the building. For most shopfronts — especially larger openings and higher-traffic entrances — framed construction is the straightforward engineering answer.
The case for frameless
Frameless automatic glass doors deliver a minimal, glass-forward look that suits showrooms, hotels and premium retail. The cost of that look is specification discipline: glass thickness and type, patch fittings, structural support and operator compatibility must all be confirmed together, and each frameless configuration is custom assessed rather than picked from a table. Where an opening cannot support a frameless assembly, a slim-profile framed alternative usually gets very close to the same aesthetic.
Choosing between them
The honest answer is that the opening chooses for you more often than taste does. Submit your dimensions through the custom automatic sliding doors page and the assessment will tell you whether frameless is viable for your entrance; the MC-125 automatic sliding-door operator serves both constructions. Coetz™ designs and manufactures both in Johannesburg, and the same three supply options — shopfront only, operator only, or complete package — apply either way.
Framed vs frameless sliding doors: the key differences
Choosing between framed and frameless sliding doors is mostly about aesthetics, budget and setting. Aluminium-framed automatic sliding doors use slim, powder-coated framing that is robust, cost-effective and quick to install, with excellent durability for high-traffic entrances. Frameless sliding doors use toughened glass with minimal visible hardware for an ultra-clean, premium look that maximises visibility. Both are automatic, both carry safety glass, and both can be tailored to your opening.
Cost, durability and look
Frameless sliding doors sit at the premium end and suit statement retail and corporate entrances where the glass is the feature. Aluminium-framed systems are the practical workhorse: strong, weather-tight and easier on the budget, with a wide colour range. Many projects combine both — frameless for the feature entrance and framed for surrounding glazing.
Which should you choose?
Choose frameless sliding doors for a premium, minimalist look, and aluminium-framed for durability and value. Coetz™ and MC Automations design, supply and install both across South Africa, so we can advise on the best fit for your building and foot traffic. Explore our automatic door systems to see the options.
Supplied and installed nationwide
From frameless glass entrances to aluminium-framed automatic doors, we handle specification, manufacture and installation for a clean, durable, reliable result across commercial and retail projects.
Where each system works best
Frameless sliding doors are the natural fit for flagship stores, hotels, showrooms and corporate lobbies, where a seamless glass entrance makes a strong first impression and keeps the display in full view. Aluminium-framed automatic sliding doors suit supermarkets, clinics, offices and busy public buildings, where dependable, heavy-duty operation and value matter most. Both handle high pedestrian traffic and integrate the same activation and safety sensors, so the decision is really about the look you want and the budget you have.
Maintenance and safety
Whichever you choose, an automatic sliding door needs the same routine care: keep the tracks and sensors clean, check rollers and belts, and re-test the safety functions periodically. Both framed and frameless sliding doors are commissioned with safety sensors that prevent contact and hold the door open when someone is in the opening, so they stay safe and reliable for years with simple servicing.
Which door type suits the opening
Traffic and wall space decide the layout for aluminium-Framed vs Frameless automatic sliding doors. Single sliding is the everyday shopfront answer; bi-parting halves the travel and handles the busiest public entrances; telescopic stacks the leaves where there is not enough wall to park them; and a swing operator automates a hinged door you already have.
- MC-125 sliding: single leaf to 150 kg, or bi-parting 2 × 120 kg, openings 1450–5000 mm.
- MCW-100 swing: existing hinged doors to 1,200 mm / 150 kg (interdependent).
- Tested to one million operating cycles, 2-year manufacturer warranty on the operator.
Survey and specification for aluminium-Framed vs Frameless automatic sliding doors
A survey for aluminium-Framed vs Frameless automatic sliding doors is short but specific: structural opening width and height, the condition and support of the head, what runs above the ceiling line, the power position, and how people actually approach the doorway. Those notes become the specification, and they are also what makes two quotations comparable instead of guesswork.
Power, load-shedding and access control
Decide up front whether the door should fail open for escape or fail secure for stock, and whether a battery backup should keep it running through a load-shedding slot or simply park it safely. Whichever you choose, staff need to be shown the manual release. Access control belongs in the same conversation: card readers, push buttons, intercoms and time clocks are far cheaper specified with the door than cabled in afterwards through a finished ceiling.
Can an existing hinged door be automated?
Usually yes. The MCW-100 swing operator fits an existing hinged door up to 1,200 mm and 150 kg (interdependent), with push-arm and pull-arm options.
Is installation available nationwide?
Yes — installation and service cover the country, with a technician on site within 24 hours in Gauteng and within 48 hours elsewhere.
What to send us for a quote
A useful quotation needs very little: the structural opening width and height, a photograph of the doorway taken square-on, a note of what is above the opening, and a rough idea of daily traffic. Tell us whether access control or a battery backup is wanted and the quote comes back complete rather than caveated.
- Structural opening width and height in millimetres.
- A square-on photograph of the doorway and what sits above it.
- Rough daily traffic, including deliveries.
- Whether access control, intercom or battery backup is wanted.
- Any deadline the entrance has to meet.
Making the entrance work for everybody
Hands-free access matters most to the people who find doors hardest: wheelchair users, parents with prams, delivery staff with both hands full. For aluminium-Framed vs Frameless automatic sliding doors we set hold-open time against how quickly people really move through the opening, and presence detection holds the door for anyone who pauses. A push-pad or a wave switch can be added where staff want manual control.
Estimating the traffic honestly
One cycle is one open-and-close, so a doorway used by 400 people a day is not doing 400 cycles — it is doing far more once deliveries, staff and trolleys are counted. Estimating that number before ordering is what separates an entrance that lasts from one that needs a call-out every few months, because the operator, the sensors and the service interval are all chosen against it.
Can the door be set to stay open at busy times?
Yes. Hold-open time is adjustable, and many sites run a longer setting during deliveries or peak trading and a shorter one the rest of the day.
Can we add card readers or an intercom?
Yes. They are far cheaper included with the original installation than retro-fitted, because the cable route is open while the header is being fitted.
Frameless sliding doors in short
If you are pricing frameless sliding doors, send the structural opening sizes and a photograph and we will specify the system, the sensors and the glass against the traffic the doorway really carries. Frameless sliding doors are supplied, installed and serviced by one team, with spares held locally.
Ask us about frameless sliding doors and we will confirm the opening, the power supply and the traffic flow before quoting a fixed price.
Frameless sliding doors at a glance
- Pricing for frameless sliding doors follows the opening width, the glass and the sensor layout.
- Ask us to confirm the opening before ordering frameless sliding doors.
